CURRENT NEWCASTLE PLAN

Here is my current design for a Newcastle layout drawn using AnyRail.  It is based on the 1937 track plan you can see below. The station throat has been straightened using double-slip points and simplified, to allow easier running for through-traffic on my mythical North Coast Line, which runs under the Hunter River utilising the Brunel inspired Newcastle Harbour Tunnel [?].  The simplified trackplan will also be controlled from computer or tablet, with just a simple single button press, setting multiple points and signals. Access to the shunting neck [which is longer than the prototype] is also via a double-slip point [now], allowing the pilot engine to access ALL platforms, rather than see-saw to reach platform 1 as it had to do in reality.  There is not much room for a yard, which in reality was huge, however there is space for a small goods shed, a loading bank with crane, a carriage shed, and a few coal roads. The arrival and departure roads had to come to the front due to lack of space to the rear.  Of course there is an oil depot, allowing me to rekindle that moment at the terminus of Wickham Branch, where as a small boy I was lifted up onto the footplate of a 19-class, and my love-affair with trains began.

[CLICK ON THE IMAGES TO SEE THEM FULL SCREEN]

[HIT ESCAPE TO RETURN TO THE BLOG]

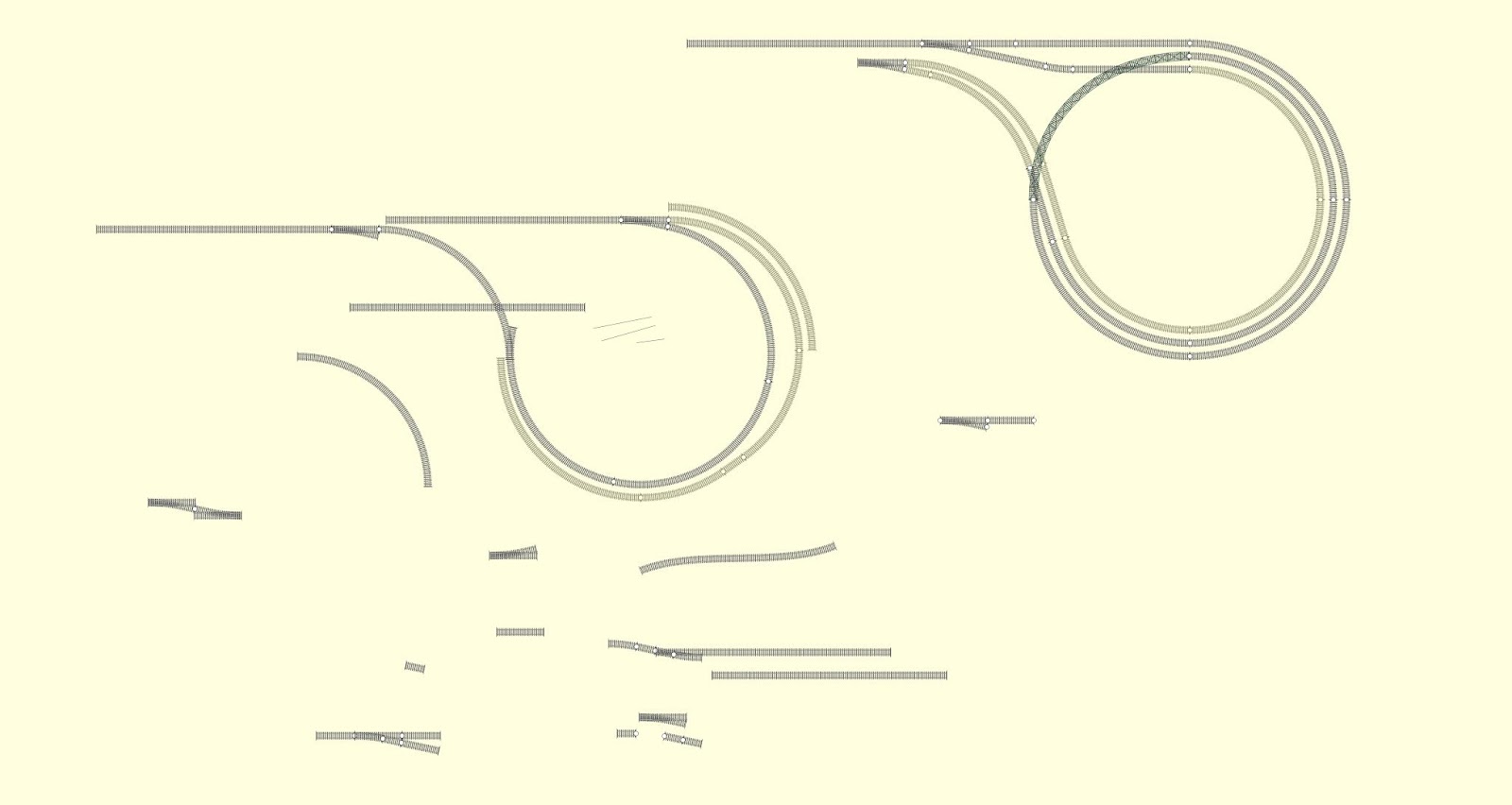

Staging is in the form of a true flat spiral. The idea came to me while playing around with track pieces in AnyRail while designing a return loop, and not wanting to use multiple layover tracks with points, as the points took up so much room.  My design creates 24 metres of storage.

Only after completing the design, did I remember that maybe I had seen something similar on youTUBE before, and in fact, I had; a creation of James Risner - you can watch his version at the following link.  He runs super-long trains through his trackwork.  I will be running much shorter trains, usually only with one engine, and with timed separation between each train.

https://www.youtube.com/watch?v=qtc__nxtQSc

https://www.youtube.com/watch?v=kN6BXDROBVk&t=95s

For those of you who cannot find the video on youTUBE here is a short sample.
